Quectel

Manufacturer Overview

Quectel Wireless Solutions

We are an IoT solution provider headquartered in Shanghai, China. We offer optimal 5G/4G/LPWA/GNSS/Wi-Fi/Smart modules, antenna solutions, and PCBA solutions for the IoT/M2M market. Founded in 2010, the company is now listed on the Shanghai Stock Exchange, with more than 50 sales offices and 8 R&D centers worldwide. We have over 5,800 employees globally, including more than 3,000 engineers. In addition, with both in-house and partner manufacturing facilities, our monthly production capacity exceeds 30 million units.

Product Information

Cellular module

5G module

Much-anticipated 5G modules released for the Japanese market.

Variant	RM520N-GL

5G NR	5G NR	3GPP Release 16 NSA/SA operation, Sub-6 GHz
NSA Bands	n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/ n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
SA Bands	n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/ n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
Max. Sub-6 BW	120MHz
Sub-6 CA	FDD + FDD, TDD + TDD, FDD + TDD DL 2CA/UL 2CA
mmWave Bands	ー
DL 4 × 4 MIMO	n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79
UL 2 × 2 MIMO	n38/n41/n48/n77/n78/n79
LTE	LTE Category	DL Cat 19/ UL Cat 18
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/ B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD	B34/B38/B39/B40/B41/B42/B43/B48
LAA	B46
DL 4 × 4 MIMO	B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66
UMTS	WCDMA Bands	B1/B2/B4/B5/B8/B19
Embedded GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS
PCIe 4.0 Interface	Supported
USB 3.1 Interface	Supported
eSIM	Supported / Built-in eSIM (optional)
Region	Global
Form factor	M.2 : 52.0 mm × 30.0 mm × 2.3 mm
Certification	Regulatory	GCF/ PTCRB/ CE/ Anatel/ CCC/ RCM/ IC/ FCC/ JATE/ TELEC/ KC/ NCC
Carrier	T-Mobile/Telstra/AT&T/Deutsche Telekom/docomo/KDDI/SoftBank*
Product URL	RM520N

“*”: Under development/ In progress.

visit other product information
(Japan site)

visit other product information
(Head Office site)

LTE Standard Module

This module is compatible with LTECat1/Cat4 and is designed for Japanese and global deployment.

Variant	EC21-J	EG91-JP	EG21-G	EC25-J	EG95-JP	EG25-G

LTE	FDD-LTE	B1/B3/B8/B18/B19/B26	B1/B3/B8/B18/B19/B26	B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/B28	B1/B3/B8/B18/B19/ B26	B1/B3/B8/B18/B19/B26	B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/B28
TDD-LTE	ー	ー	B38/B39/B40/B41	B41	B41	B38/B39/B40/B41
Category	Cat.1 10Mbps(DL) 5Mbps(UL)	Cat.1 10Mbps(DL) 5Mbps(UL)	Cat.1 10Mbps(DL) 5Mbps(UL)	Cat.4 150Mbps(DL) 50Mbps(UL)	Cat.4 150Mbps(DL) 50Mbps(UL)	Cat.4 150Mbps(DL) 50Mbps(UL)
3G	WCDMA	ー	ー	B1/B2/B4/B5/B6/B8/B19	B1/B6/B8/B19	ー	B1/B2/B4/B5/B6/B8/B19
GSM	ー	ー	B2/B3/B5/B8	ー	ー	B2/B3/B5/B8
GNSS	option
Wi-Fi I/F		ー			ー
Package	LCC / MiniPCIe	LGA	LGA / MiniPCIe	LCC / MiniPCIe	LGA	LGA / MiniPCIe
Certification CarrierIOT	JATE/TELEC docomo/KDDI	JATE/TELEC docomo/KDDI	JATE/TELEC ー	JATE/TELEC docomo/KDDI/SoftBank	JATE/TELEC docomo/KDDI/SoftBank	JATE/TELEC ー
Product URL	EC21	EG91	EG21-G	EC25	EG95	EG25-G

visit other product information
(Japan site)

visit other product information
(Head Office site)

LTE LPWA Module

This module is compatible with LTECatNB/CatM and is designed for Japanese and global deployment.

Variant	BG96	BG95-M5	BG95-M6	BG950A-GL	BG77	BG770A-GL

LTE	FDD-LTE	M1/NB1:B1/B2/B3/B4/ B5/B8/B12/ B13/B18/B19/ B20/(B25/B26)/B28	M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B28/ B66/B71/B85	M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B28/ B66/B71/B85	M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66 NB2:B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B28/B66	M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B14/B18/B19/B20/B25/ B26/B28/B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/ B66/B71/B85	M1:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B26/B27/ B28/B66 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B17/ B18/B19/B20/B25/B28/ B66
Category	Cat.M1:375Kbps(DL) Cat.M1:375Kbps(UL) Cat.NB1:32Kbps(DL) Cat.NB1:70Kbps(UL)	Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL)	Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL)	Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158Kbps(UL)	Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL)	Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158Kbps(UL)
GPRS	850/900/1800/1900 MHz	850/900/1800/1900 MHz	ー	ー	ー	ー
GNSS
Package	LGA / MiniPCIe	LGA	LGA	LGA	LGA	LGA
Certification CarrierIOT	JATE/TELEC docomo/KDDI/SoftBank	JATE/TELEC docomo/KDDI	JATE/TELEC docomo/KDDI/Rakuten	JATE/TELEC docomo	JATE/TELEC –	JATE/TELEC docomo/KDDI/Rakuten
Product URL	BG96	BG95	BG95	BG950A-GL	BG77	BG770A-GL

visit other product information
(Japan site)

visit other product information
(Head Office site)

Evaluation board

There are 2 major types of evaluation kits available. The first is the UMTS&LTE EVB KIT JP, which is dedicated to implementation products. The second is the mini PCIe EVB KIT JP, which is dedicated to miniPCIe products. Each product includes a domestic-compliant antenna, connection cables, and a screwdriver. The image shows a CD-R, but currently the kit is provided on a USB flash drive. The evaluation can be started immediately by simply connecting the modules to the evaluation board. An example of a module to be evaluated is shown on the right side of picture.

1. UMTS&LTE EVB KIT JP (only for mounted products)

Efinix — UMTS&LTE EVB KIT JP (for mounting products only)

2. 2. mini PCIe EVB KIT JP (only for miniPCIe products)

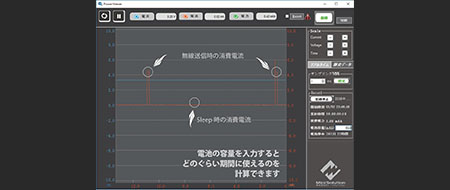

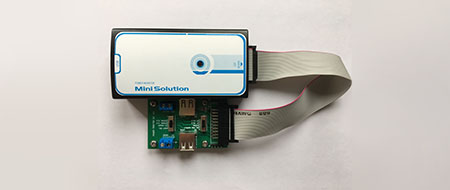

Development

Quectel Wireless Solutions provides a free of charge development environment that seamlessly enables your development.

Tool name	QNavigator	QCOM	QWinLog	QFlash
Summary	Easy, semi-automatic access to the module’s representative functions.	Direct control with AT commands	Internal logs that enable detailed analysis can be easily accessed.	Easy rewriting of module firmware
Screenshot Image

LTE Smart Module

A module capable of developing apps with integrated peripheral functions.

Variant	SC200E-JP	SC206E-GL

LTE	FDD-LTE	B1/B3/B5/B8/B11/B18/B19/B21/B26/B28	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B66/B71
TDD-LTE	B41	B34/B38/B39/B40/B41
Category	Cat.4 150Mbps(DL) 50Mbps(UL)	Cat.4 150Mbps(DL) 50Mbps(UL)
3G	WCDMA	B1/B6/B8/B19	B1/B2/B4/B5/B6/B8/B19
GSM	–	Quad band
GNSS	GPS/ BDS/ GLONASS/Galileo/ QZSS/ SBAS	GPS/ BDS/ GLONASS/ Galileo/ QZSS/ SBAS/ NavIC, L1
Wi-Fi I/F	2.4 & 5 GHz 802.11a/b/g/n/ac
LCM	1 group of 4-lane MIPI DSI, HD+ (1680 × 720) @ 60 fps
Camera	2 groups of 4-lane MIPI CSI, up to 2.5 Gbps/lane 2 or 3 cameras supported, up to 25 MP or 13 MP + 13 MP with dual ISP
Touch Panel	Capacitive touch panel
Audio	Capacitive touch panel
Audio	3 analog inputs: MIC1, MIC2, MIC3 (including one noise-canceling MIC) 3 analog outputs: Line Out, earpiece, headphone
Video	Encoder: 1080P 8-bit H.264/H.265(HEVC) @ 30 fps Decoder: 1080P 8-bit H.264/H.265(HEVC)/VP9 @ 30 fps
CPU	QCM2290, Quad-core ARM Cortex-A53 64-bit CPU @ 2.0 GHz
OS	Android 12/ 13/ 14	Yocto Linux (Kernel 5.4)
Memory	2 GB LPDDR4X + 16 GBeMMC 3 GB LPDDR4X + 32 GBeMMC	1 GB + 8 GB (LPDDR4X eMCP, Default) 2 GB + 16 GB (LPDDR4X eMCP, Optional)
Package	LCC + LGA 40.5ｍｍ × 40.5ｍｍ × 2.85ｍｍ 64-bit CPU @ 2.0 GHz
Certification	JATE/TELEC	JATE/ TELEC
CarrierIOT	Docomo	—
Product URL	SC200E	SC206E

GNSS Module

Quectel Wireless Solutions provides a variety of products from Antenna Mounted to Automotive grade.

	L86-M33	LC86G(LA)	LC76G(PA)	LC26G(AB)

ChipSET	MT3333	AG3352	AG3352	AG3352
Constellation	GPS/GLONASS/QZSS	GPS/GLONASS/Galileo/ BDS/QZSS	GPS/GLONASS/Galileo/ BDS/QZSS	GPS/GLONASS/Galileo/ BDS/QZSS
Band	L1	L1	L1	L1
Accuracy	Autonomous: 2.5 m CEP	Autonomous: 1.5 m CEP	Autonomous: 1.5 m CEP	Autonomous: 1.5 m CEP
Technology	-　-　-	-　-　-	-　-　-	-　-　-
Tracking channels	33	47	47	47
TTFF w/o AGNSS	1s(H/S)	1s(H/S)	1s(H/S)	2s(H/S)
Power Supply	2.8–4.3V, typ. 3.3V	2.55–3.6V, typ. 3.3V	2.55–3.6V, typ. 3.3V	2.55–3.6V, typ. 3.3V
Power Consumption	Acquisition	30mA	34mA	10mA	36mA
Tracking	26mA	34mA	10mA	36mA
Backup Mode	7uA	13uA	13uA	15uA
Dimensions (mm)	18.4×18.4×6.45	18.4×18.4×6.95	10.1×9.7×2.4	16.0×12.2×2.4
Antenna	Patch/External	Patch/External	External	External

				Coming Soon
	LC29H(BA)	LC29H(CA)	LC79H(AL)	LS550G(00)

ChipSET	AG3335A/T	AG3335A/T	AG3335M	AG3352
Constellation	GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS	GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS	GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS	GPS/GLONASS/Galileo/ BeiDou/QZSS
Band	L1　+　L5		L1　+　L5	L1
Accuracy	RTK: 0.1 m	Autonomous: 1.0 m CEP	Autonomous: 1.0 m CEP	Autonomous: 1.5 m CEP
Technology	DR　+　RTK	DR	-　-　-	-　-　-
Tracking channels	-　-　-	-　-　-	135	47
TTFF w/o AGNSS	1s(H/S)	1s(H/S)	1s(H/S)	2s(H/S)
Power Supply	3.1–3.6V, typ. 3.3V	3.1–3.6V, typ. 3.3V	1.75–1.98V, typ. 1.8V	1.75–1.98V, typ. 1.8V
Power Consumption	Acquisition	32mA	30mA	33mA	TBD
Tracking	32mA	30mA	33mA	TBD
Backup Mode	25uA	25uA	20uA	TBD
Dimensions (mm)	16.0×12.2×2.5	16.0×12.2×2.5	10.1×9.7×2.4	5.0×5.0×1.05
Antenna	External	External	External	External

visit other product information
(Japan site)

visit other product information
(Head Office site)

Evaluation board

An evaluation board (EVB) is available for each GNSS module.

Wi-Fi & Bluetooth module

We offer a wide range of products from WiFi4 to WiFi7.


	WiFi4	WiFi5
FC41D	FC30R	FCU741R	FC20	FC80A

ChipSET	BK7231M	RTL8189EM	RTL8731BU-CG	QCA1023	CYW54591
WLAN Protocol	802.11b/g/n	802.11b/g/n	802.11a/b/g/n	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Band	2.4GHz	2.4GHz	2.4GHz/5GHｚ	2.4GHｚ/5GHｚ	2.4GHｚ/5GHｚ
Bluetooth	5.2	-　-　-	-　-　-	5	5.1
WiFi Antenna	1×1	1×1	1×1	1×1	2×2
Mode	AP/STA	AP/STA	AP/STA , AP+STA	AP/STA	AP/STA
Interface	UART×2, SPI×1, I2C×1	SDIO 3.0×1	USB 2.0×1	SDIO 3.0×1	SDIO 3.0×1
Security	WPA3	TKIP/AES/WPA-PSK/ WPA2-PSK	WPA3	WEP/TKIP/AES/ WPA-PSK/WPA2-PSK	WPA3
Power Supply	3.3V	3.0–3.6V, Typ. 3.3V	3.0–3.6V, Typ. 3.3V	3.14–3.46V, Typ. 3.3V	3.2–4.5V, typ. 3.3V
Antenna	PCB/U.FL/External	External	External	External	External
Dimensions (mm)	20.0×18.0×2.6	12.0×12.0×2.1	13.0×12.2×2.25	16.6×13.0×2.05	15.0×13.0×2.2
Certification	TELEC	JATE/TELEC	JATE/TELEC	JATE/TELEC	JATE/TELEC

					New Product
	WiFi6	WiFi6	WiFi6E	WiFi6E	WiFi7
FC64E	FCE863R	FC65E	FC66E	NCM865

ChipSET	QCA2064	RTL8852BE	QCA2065	QCA2066	WCN7851
WLAN Protocol	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax/be
Band	2.4GHｚ/5GHｚ	2.4GHｚ/5GH z	2.4GHｚ/5GHｚ/6GHz	2.4GHｚ/5GHｚ/6GHz	2.4GHｚ/5GHｚ/6GHz
Bluetooth	5.3	5.2	5.3	5.3	5.4
WiFi Antenna	2×2 + 2×2	2×2	2×2	2×2 + 2×2	2×2 + 2×2
Mode	AP/STA	AP/STA	AP/STA	AP/STA	AP/STA,DBS/HBS
Interface	PCIe 3.0×1	PCIe 1.1×1	PCIe 3.0×1	PCIe 3.0×1	PCIe 3.0×1
Security	WPA3	WPA3	WPA3	WPA3	WPA3
Power Supply	2.2V,1.95V,1.8V,1.35v,0.95V	3.0–3.6V, typ. 3.3V	2.0V,1.8V,1.0V	2.0V,1.8V,1.0V	3.0–3.6V, typ. 3.3V
Antenna	External	External	External	External	External
Dimensions (mm)	18.0×19.9×2.1	15.0×13.0×2.2	18.0×19.9×2.1	18.0×19.9×2.1	22.0×30.0×2.2
Certification	JATE/TELEC	(JATE)/TELEC	Please give us your opinion.	JATE/TELEC	JATE/TELEC

visit other product information
(Japan site)

visit other product information
(Head Office site)

antenna

Each antenna can meet a wide range of needs ” Chip, PCB, pole, and custom”.

Variant	YC0001AA	YC0002AA	YFCH002WWA	YECT002AA	YECT003AA	YCN001AA

Frequency Bands(MHz)	698–960 1710–2690	698–960 1710–2690	600–960 1710–2690	700–960 1710–2690	698-960 1710-2700	700-2700
Technology	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)
Cable Length (mm)	n/a	n/a	n/a	n/a	n/a	n/a
Connector Type	SMD	SMD	SMD	Terminal	Terminal	Terminal
Mounting Type	SMD	SMD	SMD	Terminal	Terminal	Terminal
Dimensions (mm)	35.0×8.5×3.0	42×10×3	40×7.23×7.6	196.2×16×13	113×Φ10	144×Φ13
BG95-M5	○	×	×	○	○	○
BG95-M6	○	×	×	○	○	○
BG77	○	×	×	○	○	○
BG770A-GL	○	○	×	○	○	○
BG96	○	○	×	○	○	○
EC25-J	○	○	○	○	○	○
EG95-JP	○	○	○	○	○	○
EG25-G	×	×	×	○	○	×
EC21-J	○	×	○	○	×	○
EG91-JP	○	○	○	○	○	○

Variant	YDX001AA	YE0008BA	YE0011BA	YGL001AA	YE0006AA/16AA	YE0001BA

Frequency Bands(MHz)	824-2690	698–960 1710–2690	820–960 1710–2690	700–960 1710–2690	700-2700	600-6000
Technology	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)	LTE (4G)&5G
Cable Length (mm)	n/a	n/a	n/a	n/a	1500/3000	n/a
Connector Type	SMA Male	SMA Male	SMA Male	SMA Male	SMA Male	SMA Male
Mounting Type	Terminal	Terminal	Terminal	Terminal	Magnetic	Terminal
Dimensions (mm)	208×Φ12	53×Φ10.5	50×Φ16.4	196.2×16×13	318×Φ30	221×27.3×13.45
BG95-M5	○	○	○	○	×/〇	×
BG95-M6	○	○	○	○	×/○	×
BG77	○	○	○	○	×/〇	×
BG770A-GL	○	○	○	○	×/〇	×
BG96	○	×	×	○	×/〇	×
EC25-J	○	○	○	○	○/×	×
EG95-JP	○	○	○	○	○/×	×
EG25-G	×	×	×	○	×/×	×
EC21-J	○	○	○	○	×/×	×
EG91-JP	○	○	○	○	○/×	×
RM520N-GL	×	×	×	×	×/×	○

	YM0003AA	YM0015AA	YM0003CA	YM0013AA	YM0013BA

Frequency Bands(MHz)	0-6000	0-6000	0-6000	0-6000	0-6000
Technology	RF Cable	RF Cable	RF Cable	RF Cable	RF Cable
Cable Length (mm)	100	150	200	300	550
Connector Type	SMA-female to IPEX Ⅰ	SMA-female to IPEX Ⅰ	SMA-female to IPEX Ⅰ	SMA-female to IPEX Ⅰ	SMA-female to IPEX Ⅰ
Mounting Type	Screw	Screw	Screw	Screw	Screw
