Quectel
厂家概略说明
Quectel Wireless Solutions
上海的通讯模块供应商。 我们为物联网/M2M 市场提供最佳的 5G/4G/LPWA/GNSS/Wi-Fi 模块和天线解决方案，预计未来将不断扩展。 公司成立于2010年，目前在上海证券市场上市。我们在全球拥有 50 多个销售办事处、8 个技术中心和 6,000 名员工（4,500 多名内部工程师）。此外，我们拥有超过4,500万台工厂的月生产能力。(自己的工厂和合作工厂)
产品信息
手机通讯模块
5G模块
5G模块在日本市场上市。
| Variant | RM520N-GL | |
|---|---|---|
 |
||
| 5G NR | 5G NR | 3GPP Release 16 NSA/SA operation, Sub-6 GHz |
| NSA Bands | n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/ n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
| SA Bands | n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/ n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
|
| Max. Sub-6 BW | 120MHz | |
| Sub-6 CA | FDD + FDD, TDD + TDD, FDD + TDD DL 2CA/UL 2CA | |
| mmWave Bands | ー | |
| DL 4 × 4 MIMO | n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79 | |
| UL 2 × 2 MIMO | n38/n41/n48/n77/n78/n79 | |
| LTE | LTE Category | DL Cat 19/ UL Cat 18 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/ B25/B26/B28/B29/B30/B32/B66/B71 |
|
| LTE-TDD | B34/B38/B39/B40/B41/B42/B43/B48 | |
| LAA | B46 | |
| DL 4 × 4 MIMO | B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66 | |
| UMTS | WCDMA Bands | B1/B2/B4/B5/B8/B19 |
| Embedded GNSS | GPS/ GLONASS/ BDS/ Galileo/ QZSS | |
| PCIe 4.0 Interface | Supported | |
| USB 3.1 Interface | Supported | |
| eSIM | Supported / Built-in eSIM (optional) | |
| Region | Global | |
| Form factor | M.2 : 52.0 mm × 30.0 mm × 2.3 mm | |
| Certification | Regulatory | GCF/ PTCRB/ CE/ Anatel/ CCC/ RCM/ IC/ FCC/ JATE/ TELEC/ KC/ NCC |
| Carrier | T-Mobile/Telstra/AT&T/Deutsche Telekom/docomo/KDDI/SoftBank* | |
| Product URL | RM520N | |
“*”: Under development/ In progress.

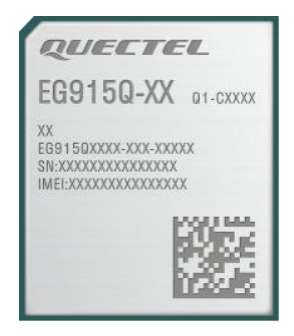

LTE标准模块
适用于 LTECat1/Cat4 的日本/全球通用模块。
| EC21-J | EG91-JP | EG21-G | EC25-J | EG95-JP | EG25-G | ||
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
||
| LTE | FDD-LTE | B1/B3/B8/B18/B19/B26 | B1/B3/B8/B18/B19/B26 | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/B28 |
B1/B3/B8/B18/B19/ B26 |
B1/B3/B8/B18/B19/B26 | B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/B28 |
| TDD-LTE | ー | ー | B38/B39/B40/B41 | B41 | B41 | B38/B39/B40/B41 | |
| Category | Cat.1 10Mbps(DL) 5Mbps(UL) |
Cat.1 10Mbps(DL) 5Mbps(UL) |
Cat.1 10Mbps(DL) 5Mbps(UL) |
Cat.4 150Mbps(DL) 50Mbps(UL) |
Cat.4 150Mbps(DL) 50Mbps(UL) |
Cat.4 150Mbps(DL) 50Mbps(UL) |
|
| 3G | WCDMA | ー | ー | B1/B2/B4/B5/B6/B8/B19 | B1/B6/B8/B19 | ー | B1/B2/B4/B5/B6/B8/B19 |
| GSM | ー | ー | B2/B3/B5/B8 | ー | ー | B2/B3/B5/B8 | |
| GNSS | option | ||||||
| Wi-Fi I/F | ー | ー | |||||
| Package | LCC / MiniPCIe | LGA | LGA / MiniPCIe | LCC / MiniPCIe | LGA | LGA / MiniPCIe | |
| Certification CarrierIOT |
JATE/TELEC docomo/KDDI |
JATE/TELEC docomo/KDDI |
JATE/TELEC ー |
JATE/TELEC docomo/KDDI/SoftBank |
JATE/TELEC docomo/KDDI |
JATE/TELEC ー |
|
| Product URL | EC21 | EG91 | EG21-G | EC25 | EG95 | EG25-G | |
LTE LPWA 模块
适用于 LTECatNB/CatM 的日本/全球通用模块。
| BG96 | BG95-M5 | BG95-M6 | BG950A-GL | BG77 | BG770A-GL | ||
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
||
| LTE | FDD-LTE | M1/NB1:B1/B2/B3/B4/ B5/B8/B12/ B13/B18/B19/ B20/(B25/B26)/B28 |
M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B28/ B66/B71/B85 |
M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B28/ B66/B71/B85 |
M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B18/B19/B20/ B25/B26/B27/B28/ B66 NB2:B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B28/B66 |
M1:B1/B2/B3/B4/ B5/B8/B12/B13/ B14/B18/B19/B20/B25/ B26/B28/B66/B85 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/ B66/B71/B85 |
M1:B1/B2/B3/B4/ B5/B8/B12/B13/B18/ B19/B20/B25/B26/B27/ B28/B66 NB2:B1/B2/B3/B4/ B5/B8/B12/B13/B17/ B18/B19/B20/B25/B28/ B66 |
| Category | Cat.M1:375Kbps(DL) Cat.M1:375Kbps(UL) Cat.NB1:32Kbps(DL) Cat.NB1:70Kbps(UL) | Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL) | Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL) | Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158Kbps(UL) | Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158.5Kbps(UL) | Cat.M1:588Kbps(DL) Cat.M1:1119Kbps(UL) Cat.NB2:127Kbps(DL) Cat.NB2:158Kbps(UL) | |
| GPRS | 850/900/1800/1900 MHz | 850/900/1800/1900 MHz | ー | ー | ー | ー | |
| GNSS | |||||||
| Package | LGA / MiniPCIe | LGA | LGA | LGA | LGA | LGA | |
| Certification CarrierIOT |
JATE/TELEC docomo/KDDI/SoftBank |
JATE/TELEC docomo/KDDI |
JATE/TELEC docomo |
JATE/TELEC ー |
JATE/TELEC docomo/KDDI |
||
| Product URL | BG96 | BG95 | BG95 | BG950A-GL | BG77 | BG770A-GL | |
评估板
有两种类型的评估套件可用。第一个是专为实现产品而使用的套件，称为 UMTS<E EVB KIT JP，第二个是迷你 PCIe EVB KIT JP 的迷你 PCIe 产品专用套件。每种产品都包括国内兼容天线、连接电缆和驱动器。 CD-R 显示在图像中，但现在通过 U盘来替代。只需在每个评估板上安装符合条件的模块，即可立即开始评估。 右侧是目标模块的示例。
1. UMTS<E EVB KIT JP(仅适用于组装产品)
2. mini PCIe EVB KIT JP(迷你 PCIe 产品专用)
开发环境
Quectel 将免费提供开发环境，使客户的开发能够无缝实现。
| 工具名称 | QNavigator | QCOM | QWinLog | QFlash |
|---|---|---|---|---|
| 概述 | 半自动轻松访问模块的功能 | 用AT 指令的直接控制 | 轻松获取实现详细分析的内部日志 | 轻松重写模块固件 |
| 软件画面 |  |
 |
 |
 |
GNSS模块
我们提供从天线安装到车载级别的广泛产品。
| New Product | New Product | |||
| L86-M33 | LC86G(LA) | LC76G(PA) | ||
|---|---|---|---|---|
 |
 |
 |
||
| ChipSET | MT3333 | AG3352 | AG3352 | |
| Constellation | GPS/GLONASS/Galileo/QZSS/SBAS | GPS/GLONASS/Galileo/QZSS/SBAS | GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS |
|
| Band | L1 | L1 | L1 | |
| Accuracy | Autonomous: 2.5 m CEP | Autonomous: 1.5 m CEP | Autonomous: 2.0 m CEP | |
| Technology | - - - | - - - | - - - | |
| Tracking channels | 33 | 47 | 47 | |
| TTFF w/o AGNSS | 1s(H/S) | 1s(H/S) | 2s(H/S) | |
| Power Supply | 2.8–4.3V, typ. 3.3V | 2.55–3.6V, typ. 3.3V | 2.55–3.6V, typ. 3.3V | |
| Power Consumption | Acquisition | 30mA | 32mA | 10.5mA |
| Tracking | 26mA | 32mA | 10.5mA | |
| Backup Mode | 7uA | 14uA | TBD | |
| Dimensions (mm) | 18.4×18.4×6.45 | 18.4×18.4×6.95 | 10.1×9.7×2.4 | |
| Antenna | Patch/External | Patch/External | External | |
| Coming Soon | New Product | |||
| LC26G(AB) | LC29H(BA) | LC79H(AL) | ||
|---|---|---|---|---|
| No image |  |
 |
||
| ChipSET | AG3352 | AG3335A/T | AG3335M | |
| Constellation | GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS |
GPS/GLONASS/Galileo/ BeiDou/QZSS |
GPS/GLONASS/Galileo/ BeiDou/QZSS/SBAS |
|
| Band | L1 | L1 + L5 | ||
| Accuracy | Autonomous: 1.5 m CEP | Autonomous: 0.1 m CEP | Autonomous: 1.0 m CEP | |
| Technology | - - - | DR + RTK | - - - | |
| Tracking channels | - - - | 135 | ||
| TTFF w/o AGNSS | 1s(H/S) | 1s(H/S) | ||
| Power Supply | 3.1–3.6V, typ. 3.3V | 1.7–1.9V, typ. 1.8V | ||
| Power Consumption | Acquisition | 30mA | 32mA | |
| Tracking | 30mA | 32mA | ||
| Backup Mode | 25uA | 20uA | ||
| Dimensions (mm) | 12.2×16.0×2.5 | 10.1×9.7×2.4 | ||
| Antenna | External | External | ||
评估板
每个 GNSS 模块都有评估板 （EVB）。
Wi-Fi & 蓝牙模块
我们提供范围广泛的产品，从配备天线的产品到汽车级产品
| New Product | New Product | New Product | New Product | ||
| WiFi4 | WiFi5 | ||||
|---|---|---|---|---|---|
| FC41D | FC30R | FC909A | FC20 | FC80A | |
 |
 |
 |
 |
 |
|
| ChipSET | BK7231M | RTL8189EM | CYW43439 | QCA1023 | CYW54591 |
| WLAN Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac |
| Band | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHｚ/5GHｚ | 2.4GHｚ/5GHｚ |
| Bluetooth | 5.2 | - - - | 5.2 | 5 | 5.1 |
| WiFi Antenna | 1×1 | 1×1 | 1×1 | 1×1 | 2×2 |
| Mode | AP/STA | AP/STA | AP/STA | AP/STA | AP/STA |
| Interface | UART×2, SPI×1, I2C×1 | SDIO 3.0×1 | SDIO 2.0×1 | SDIO 3.0×1 | SDIO 3.0×1 |
| Security | WPA3 | TKIP/AES/WPA-PSK/ WPA2-PSK |
WPA3 | WEP/TKIP/AES/ WPA-PSK/WPA2-PSK |
WPA3 |
| Power Supply | 3.3V | 3.0–3.6V, Typ. 3.3V | 3.0–4.8V, Typ. 3.3V | 3.14–3.46V, Typ. 3.3V | 3.2–4.5V, typ. 3.3V |
| Antenna | PCB/U.FL/External | External | External | External | External |
| Dimensions (mm) | 20.0×18.0×2.6 | 12.0×12.0×2.1 | 12.0×12.0×1.95 | 16.6×13.0×2.05 | 15.0×13.0×2.2 |
| Certification | TELEC | JATE/TELEC | 请联系我们 | JATE/TELEC | JATE/TELEC |
| New Product | Coming Soon | |
| WiFi6 | WiFi6E | |
|---|---|---|
| FC64E | FC65E | |
 |
 |
|
| ChipSET | QCA2064 | QCA2065 |
| WLAN Protocol | 802.11a/b/g/n/ac/ax | 802.11a/b/g/n/ac/ax |
| Band | 2.4GHｚ/5GHｚ | 2.4GHｚ/5GHｚ/6GHz |
| Bluetooth | 5.2 | 5.2 |
| WiFi Antenna | 2×2 + 2×2 | 2×2 |
| Mode | AP/STA | AP/STA |
| Interface | PCIe 3.0×1 | PCIe 3.0×1 |
| Security | WPA3 | WPA3 |
| Power Supply | CORE_H/M/L,RF,IO | CORE_H/M/L,RF,IO |
| Antenna | External | External |
| Dimensions (mm) | 18.0×19.9×2.1 | 18.0×19.9×2.1 |
| Certification | JATE/TELEC | 请联系我们 |
天线
我们满足从Chip、PCB、Pole到定制的各种需求。
| YC0001AA | YC0002AA | YE0010AA | YECT002AA | YECT003AA | YCN001AA | |
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
| Frequency Bands(MHz) | 698–960 1710–2690 |
698–960 1710–2690 |
698–2700 | 700–960 1710–2690 |
698-960 1710-2700 |
700-2700 |
| Technology | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G) |
| Cable Length (mm) | n/a | n/a | 1000 ±30 | n/a | n/a | n/a |
| Connector Type | SMD | SMD | Adhesive | Terminal | Terminal | Terminal |
| Mounting Type | SMD | SMD | Adhesive | Terminal | Terminal | Terminal |
| Dimensions (mm) | 35.0×8.5×3.0 | 42×10×3 | 152×18×5.9 | 196.2×16×13 | 113×Φ10 | 144×Φ13 |
| BG95-M5 | ○ | × | ○ | ○ | ○ | ○ |
| BG77 | ○ | × | ○ | ○ | ○ | ○ |
| BG770A-GL | ○ | ○ | ○ | ○ | ○ | ○ |
| BG96 | ○ | ○ | ○ | ○ | ○ | ○ |
| EC25-J | ○ | ○ | ○ | ○ | ○ | ○ |
| EG25-G | × | × | ○ | ○ | ○ | × |
| EC21-J | ○ | × | × | ○ | × | ○ |
| YDX001AA | YE0008AA | YE0011AA | YGL001AA | YE0006AA/16AA | YE0001BA | |
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
| Frequency Bands(MHz) | 824-2690 | 824–960 1710–2170 2500–2700 |
824–960 1710–2170 2500–2700 |
700–960 1710–2690 |
700-2700 | 600-6000 |
| Technology | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G) | LTE (4G)&5G |
| Cable Length (mm) | n/a | n/a | n/a | n/a | 1500/3000 | n/a |
| Connector Type | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Mounting Type | Terminal | Terminal | Terminal | Terminal | Magnetic | Terminal |
| Dimensions (mm) | 208×Φ12 | 52×Φ10 | 50×Φ10 | 196.2×16×13 | 318×Φ30 | 221×27.3×13.45 |
| BG95-M5 | ○ | × | × | ○ | ×/〇 | × |
| BG77 | ○ | × | × | ○ | ×/〇 | × |
| BG770A-GL | ○ | ○ | ○ | ○ | ×/〇 | × |
| BG96 | ○ | ○ | ○ | ○ | ×/〇 | × |
| EC25-J | ○ | × | ○ | ○ | 〇/× | × |
| EG25-G | × | × | × | ○ | ×/× | × |
| EC21-J | ○ | × | × | × | ×/× | × |
| RM520N-GL | × | × | × | × | ×/× | ○ |
| YM0003AA | YM0015AA | YM0003CA | YM0013AA | YM0013BA | |
|---|---|---|---|---|---|
 |
|||||
| Frequency Bands(MHz) | 0-6000 | 0-6000 | 0-6000 | 0-6000 | 0-6000 |
| Technology | RF Cable | RF Cable | RF Cable | RF Cable | RF Cable |
| Cable Length (mm) | 100 | 150 | 200 | 300 | 550 |
| Connector Type | SMA-female to IPEX Ⅰ | SMA-female to IPEX Ⅰ | SMA-female to IPEX Ⅰ | SMA-female to IPEX Ⅰ | SMA-female to IPEX Ⅰ |
| Mounting Type | Screw | Screw | Screw | Screw | Screw |
其他
我们支持从 2G 到 5G 的广泛手机通信。 请随时与我们联系。
| 类别 | 系列 |
|---|---|
| 5G(SA/NSA) | RG50xQ/RM50xQ/RG520F･N/RM520F･N |
| LTE-Advance | EM06/EM120/EM160 |
| Smart Modules | SC20/SC600Y/SC600T/SC66 |
| Automotive | AG35/AG52x/AG553Q |
| C-V2X | AG15 |
| 3G | UC200/UG96 |
| 2G | M66 |
